What Is a Quartz Plate Used For?

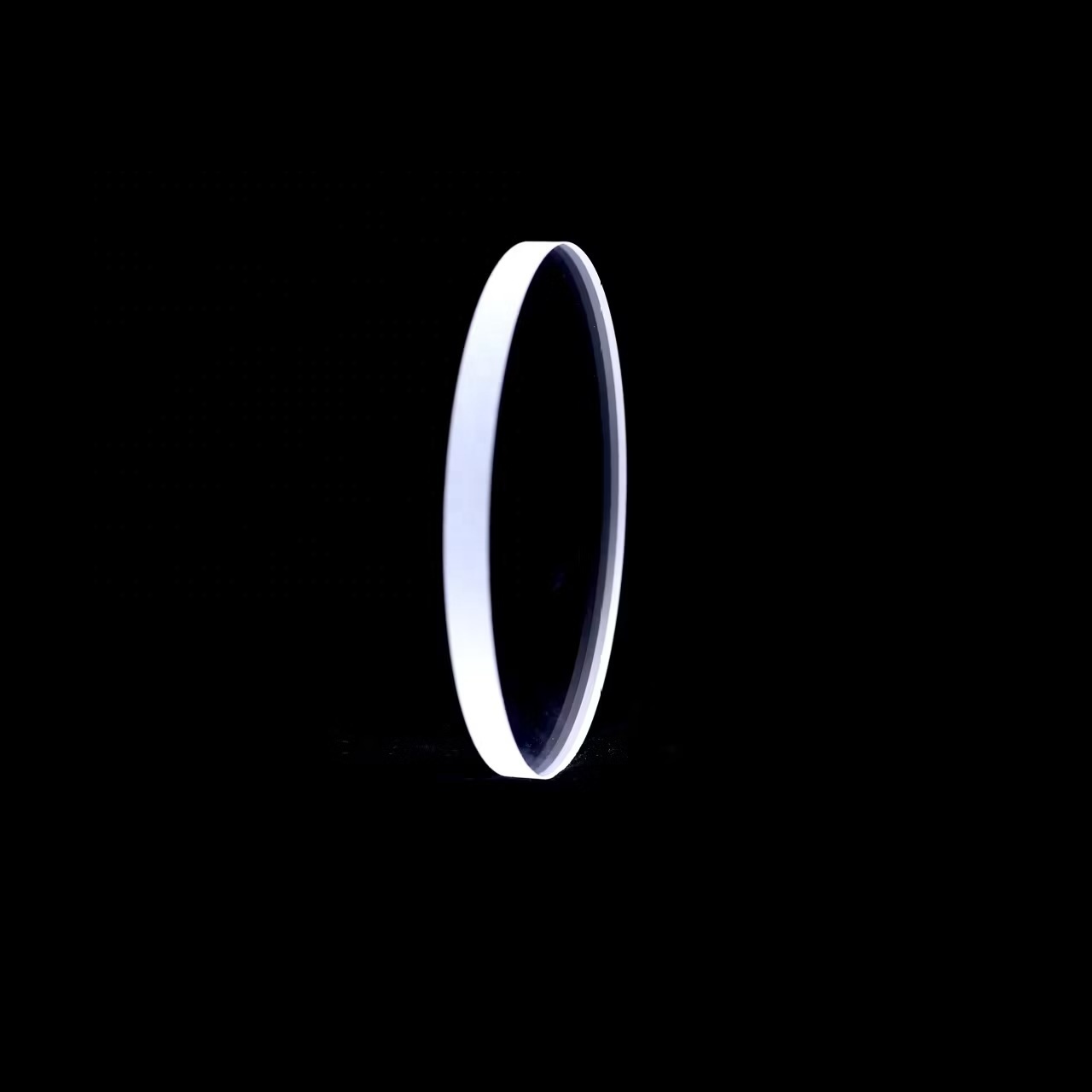

A quartz plate — also known as a quartz glass plate, fused silica sheet or quartz substrate — is a flat, precision-processed piece of high-purity silicon dioxide (SiO₂). Because quartz glass combines extreme heat resistance, high light transmittance, chemical stability and excellent electrical insulation, quartz plates are used in a remarkably wide range of industrial and scientific applications. From furnace observation windows to semiconductor wafer substrates and laser optics, this article explains the main uses of quartz plates and how to select the right one.
1. High-Temperature Observation Windows & Sight Glasses
One of the most common uses of quartz plates is as observation windows and sight glasses in high-temperature, high-pressure process equipment. Unlike ordinary glass — which softens at around 500°C — quartz plates remain structurally stable at 1100°C and can withstand short-term exposure up to 1450°C.
- Furnace & reactor viewports: clear, distortion-free viewing of processes inside diffusion furnaces, autoclaves and vacuum chambers.
- Pressure-rated windows: quartz sight glasses resist high pressure in autoclaves and pipelines when sealed with metal flanges.
- Thermal shock safety: with a thermal expansion coefficient only 1/20 that of ordinary glass, quartz windows survive rapid heating and cooling without cracking.
- Liquid level gauges: transparent quartz plates are used in level sight glass assemblies for boilers and chemical tanks.
2. Semiconductor Substrates, Wafers & Discs
High-purity quartz plates are precision-processed into substrates, wafers and discs for semiconductor and photovoltaic manufacturing. Their ultra-low metal ion content (Na/K/Fe < 1 ppm) and chemical inertness make them ideal for processes where contamination must be strictly avoided.
- Quartz wafer substrates: polished quartz wafers and discs serve as carriers, test substrates and calibration standards.
- Thin-film & coating supports: electrically fused quartz plates provide stable, clean platforms for deposition processes.
- High-temperature handling: quartz substrates maintain dimensional stability through repeated thermal cycling.
- Thickness range: available from 0.1 mm ultra-thin sheets to 100 mm thick plates for demanding structural applications.
3. Optical Components & Laser Systems
Quartz glass offers high transmittance across the full spectrum from deep ultraviolet (185 nm) to infrared (2500 nm), with visible light transmittance above 90%. This makes quartz plates essential for optical instruments and laser systems.
| Optical Application | Why Quartz Is Selected |
|---|---|
| Laser windows & mirrors | High damage threshold, low optical loss |
| UV lamp covers & discs | Deep-UV transparency (185 nm) |
| Optical flat & wave plates | Precision polishing, minimal distortion |
| Infrared observation windows | Broadband IR transmittance |
4. Precision-Machined Components: Drilling, Cutting & CNC Processing
Quartz plates are frequently custom-machined into finished components. With a Mohs hardness of 6.6 and strength far exceeding ordinary glass, quartz can be CNC-drilled, laser-drilled, cut and polished to precise specifications.
- Laser drilling: high-precision hole patterns for optical mounts, fixtures and semiconductor tooling.
- CNC cutting & shaping: round, square, rectangular, parallelogram and custom profiles.
- Edge & surface finishing: double-side polishing, chamfering, beveling and coating (anti-reflective or reflective).
- Perforated plates: custom hole arrays for gas distribution and vacuum applications.
5. Laboratory & Analytical Equipment
In laboratories, quartz plates and discs are used as sample supports, hot plates and protective shields where chemical purity and heat resistance are critical. Quartz does not leach impurities, making it safe for handling high-purity reagents and samples.
6. Custom Shapes for Specialized Industries
Beyond standard plates, quartz is fabricated into rings, boat holders, pendants and other special shapes. Representative custom products include:
- Quartz rings: acid- and alkali-resistant rings for diverse industrial applications.
- Boat holder pendants: transparent quartz supports for chemical laboratory and photovoltaic processes.
- Frosted quartz flakes: high-purity natural stone quartz with light-diffusing surfaces.
Key Properties of High-Purity Quartz Plates
| Property | Typical Value |
|---|---|
| SiO₂ purity | ≥ 99.99% (up to 99.999%) |
| Long-term service temperature | 1100°C (short-term up to 1450°C) |
| Visible light transmittance | > 90% |
| Hardness (Mohs) | 6.6 |
| Thermal expansion coefficient | ≈ 5.5 * 10⁻⁷ / °C |
| Thickness options | 0.1 mm – 100 mm |
| Available shapes | Round, square, rectangular, custom |
How to Choose the Right Quartz Plate
Selecting the correct quartz plate depends on your operating temperature, optical requirements, chemical environment and dimensional needs. Consider the purity grade, surface finish (polished, ground or frosted), thickness uniformity and whether holes or special profiles must be machined. For custom applications, reputable manufacturers provide one-stop fabrication — cutting, drilling, polishing, chamfering and coating — to meet exact drawings.
Conclusion
Quartz plates are versatile, high-performance components used everywhere from semiconductor cleanrooms to furnace viewports and laser optics. Understanding what a quartz plate is used for — and specifying the correct purity, thickness and machining — ensures reliable performance in demanding applications.
